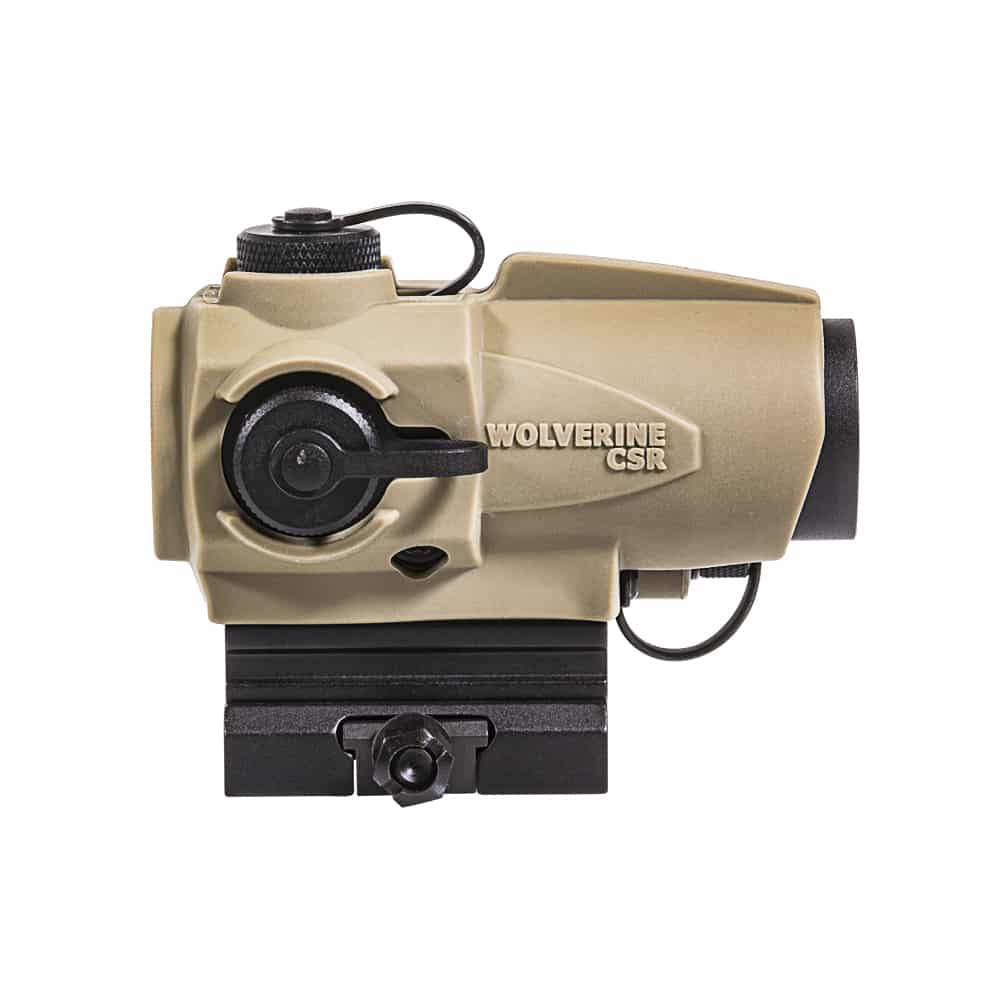

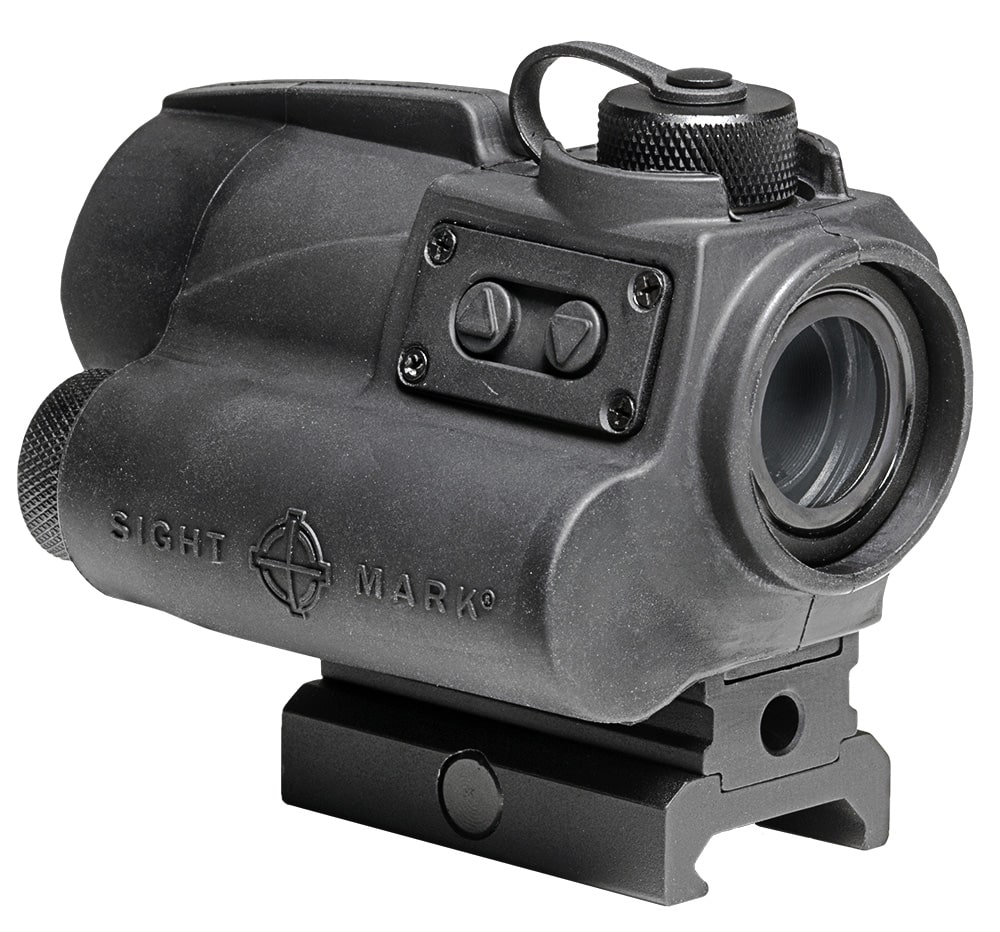

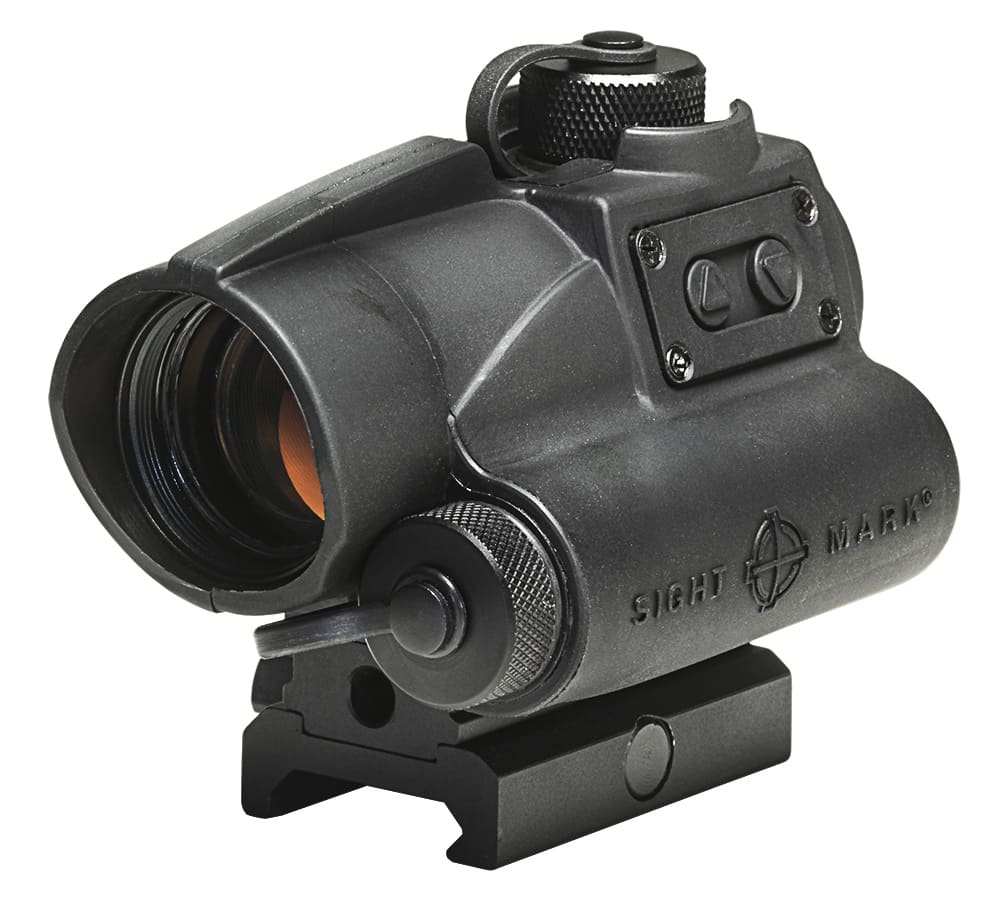

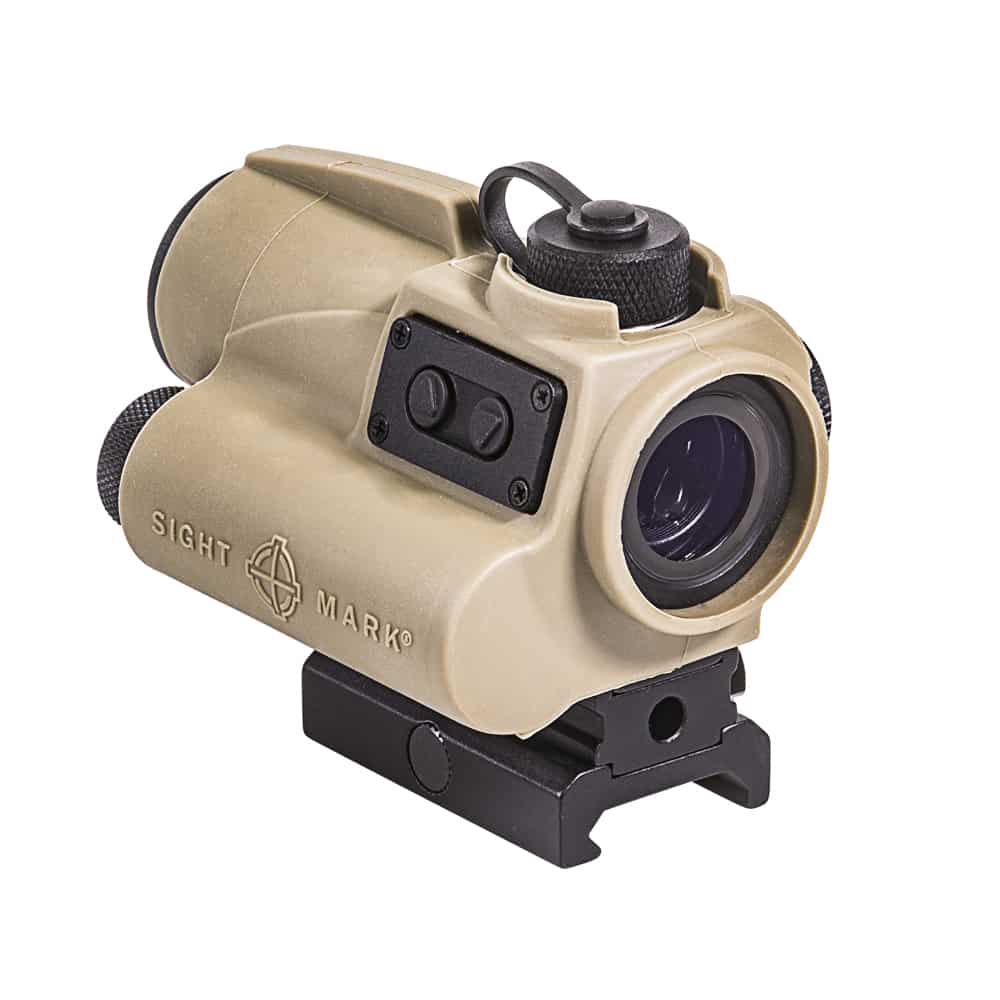

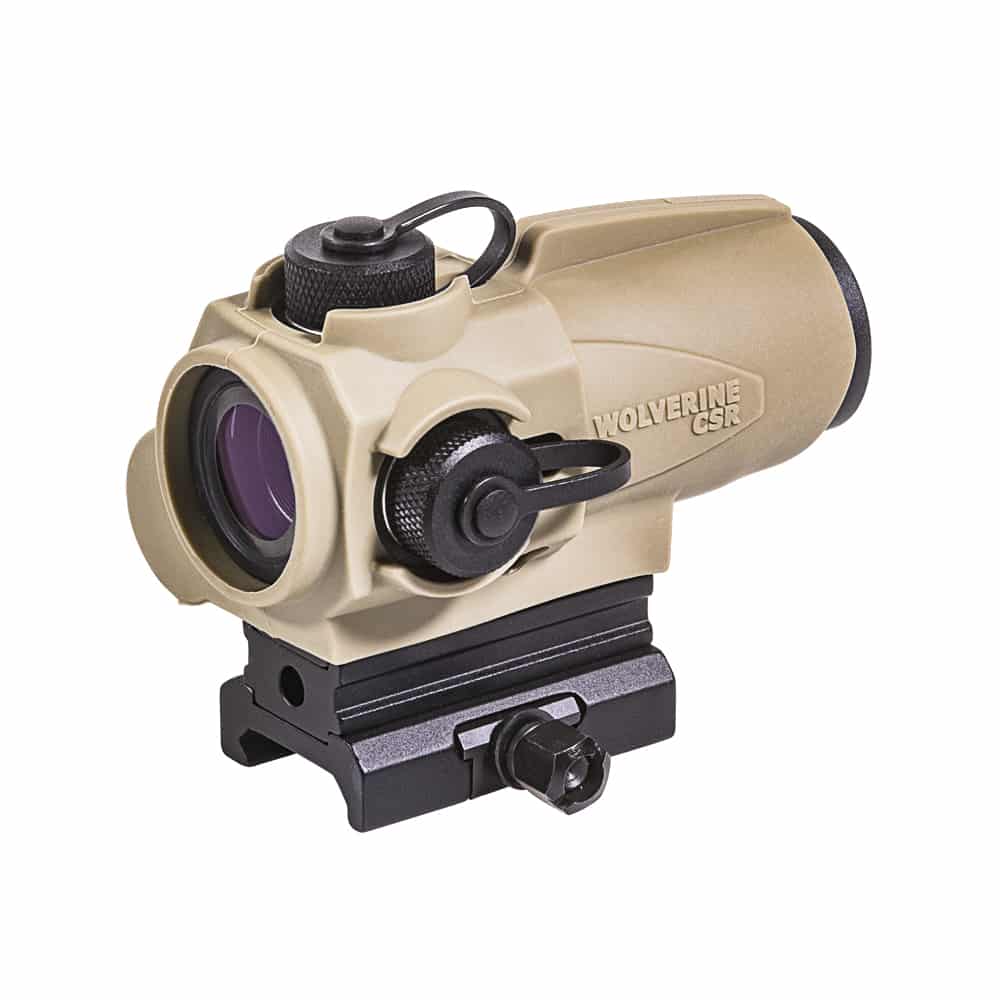

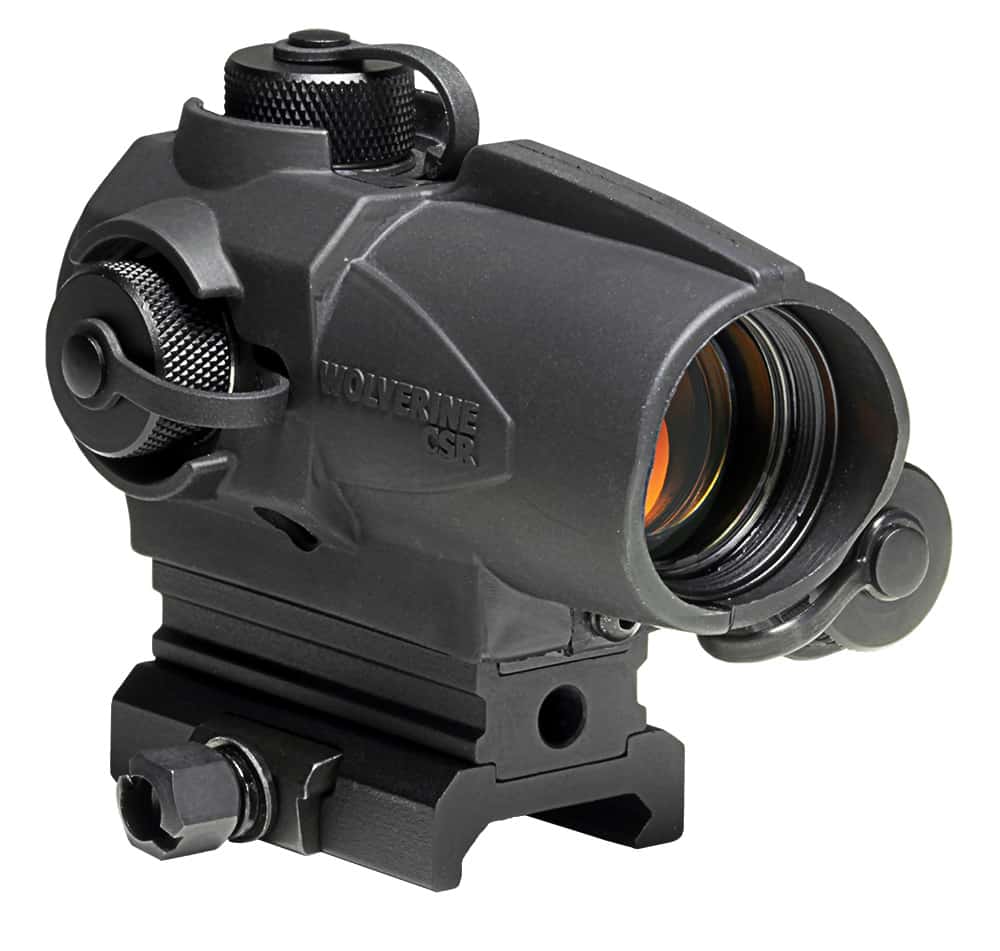

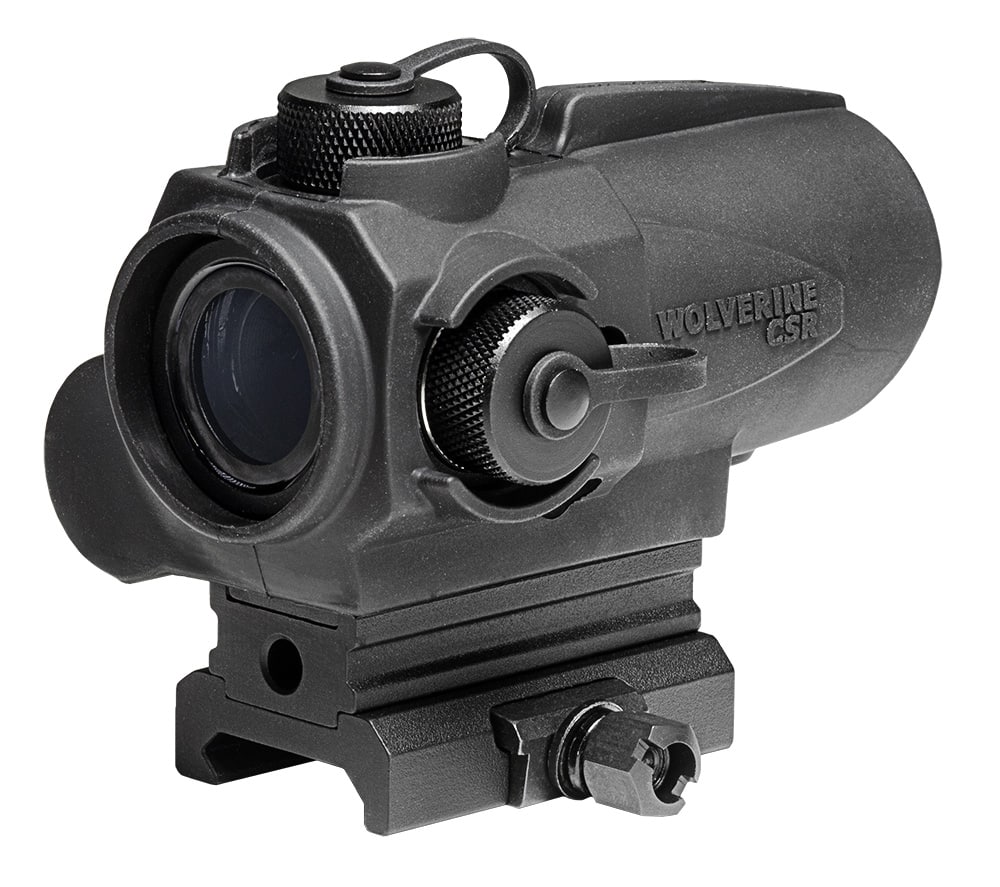

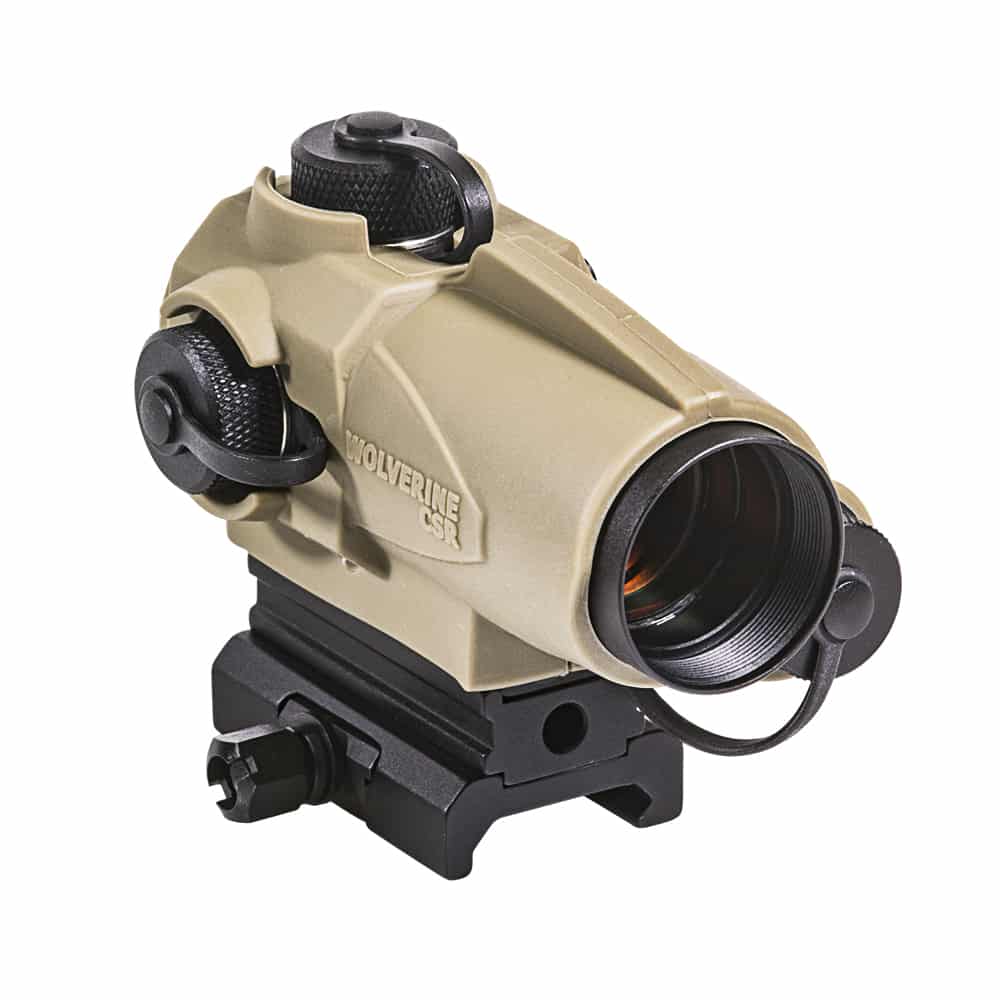

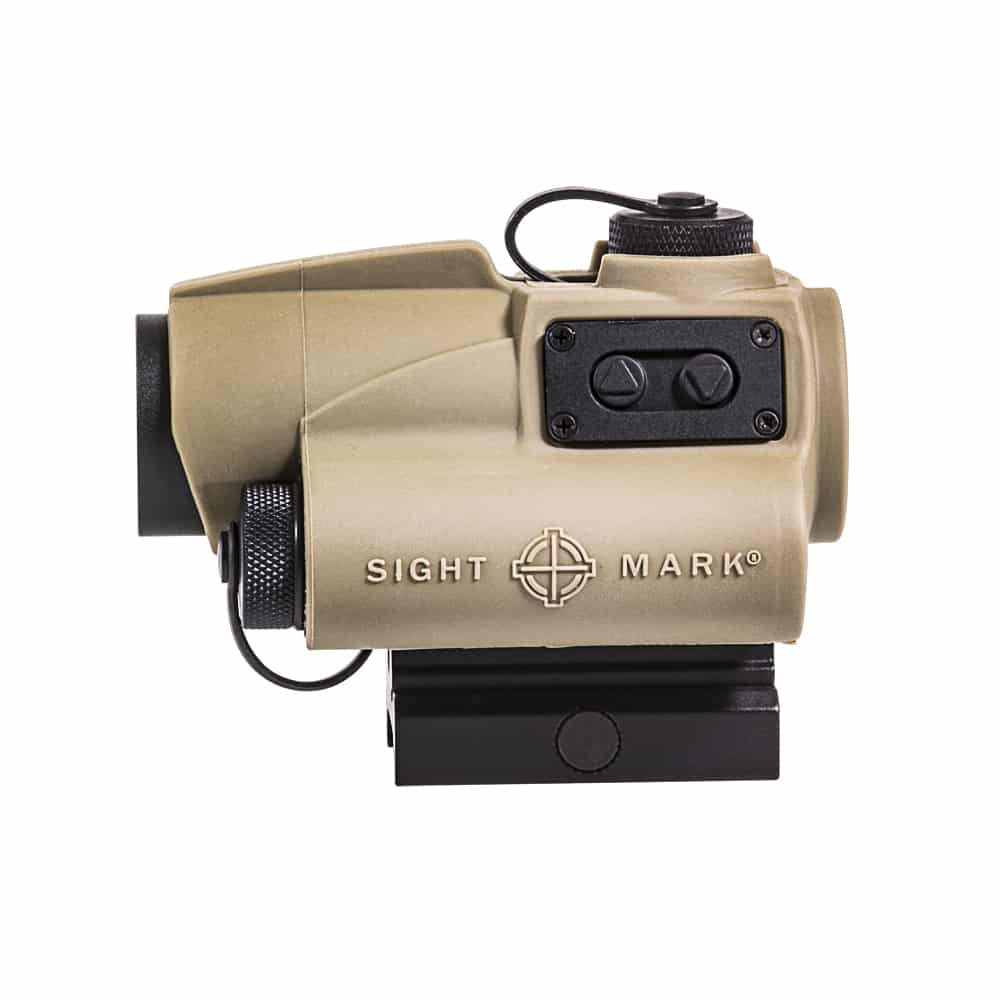

Sightmark Wolverine CSR Red Dot Reflew Sight

SKU: N/A Category:

Designed for quick-target acquisition on shotguns and short-barreled rifles, the Wolverine CSR Reflex Sight delivers unlimited eye relief and first-class battery life using a single AA battery.
Its variable brightness and night vision modes enable co-witnessing with a night vision optic.

Price:

$208.93$225.81

Description
Specifications

Sightmark Wolverine CSR Red Dot Reflew Sight:

The Sightmark Wolverine CSR Red Dot Sight is a close-range optic designed specifically for shotguns and short-barreled rifles. The CSR sports a 4 MOA red dot reticle with a 23mm objective lens and adjustable digital switch brightness controls. Compact and lightweight, the CSR weighs just 10.3 ounces and boasts extremely low power consumption, with 1,000,000 million hours battery life on low power and 50,000 hours on setting 6 from just a single AA battery. The CSR also offers variable brightness and night vision modes, which enables the ability to co-witness with a night vision sight. The responsive Wolverine sights are housed in a single piece of 6061-T6 aluminum that is rubber-armored and protected by a scratch resistant, anti-reflective lens coating. Fog proof and nitrogen purged, the CSRs are designed to provide shooters the ability to take aim in a variety of conditions and temperatures ranging from -22 to 122 F. The Wolverine was built to adapt and is ready for anything. All Wolverine models sport an IP67 waterproof rating and are water submersible to three feet. Wolverine red dot sights have an adjustable mount height and are compatible with Picatinny mounts.

Features:

  • Very low power consumption
  • Digital switch brightness controls
  • Scratch resistant, anti-reflective lens coating
  • Compact and lightweight design
  • Protected adjustment caps
  • Rubber armored, single piece 6061-T6
  • Adjustable mount height
  • IP67 waterproof rating - submergible to
  • Fogproof, nitrogen purged
  • Night vision compatible
  • Unlimited eye relief
  • Shockproof design
  • Wide range of operating temperature, -22 to 122 F
  • Powered by a single AA battery

Product Video:

Overview video:

Product Specifications:

Reticle, Type 4 MOA Dot
Reticle, Color Red
Reticle, Illuminated yes
Setting, Brightness off, NV1, NV2, 3-10
Magnification 1 x
Dimension, Window 23 mm
Material, Window glass
Eye Relief unlimited mm
Windage Range of Adjustment 120 MOA
Elevation Range of Adjustment 120 MOA
MOA Adjustment 1 MOA
Finish/Color Matte black / FDE
Body Material Aluminum 6061-T6 / rubber
Maximum Recoil .338 Win
IP Standard IP67 (submergible to 1m / 3ft)
Shockproof yes
Fog Proof yes
Lens Coating AR red
Mount Type Weaver/Picatinny
Battery Type AA
Battery Life (high) 900 - (low) 1,000,000 / 50,000 (setting 6) hours
Battery Voltage 1.5 V
Operating Temp,?F/?C -22 to 122 / -30 to 50 F/C
Length 3.3 / 84 in/mm
Width 2.8 / 71.6 in/mm
Height 2.4 / 61.1 in/mm
Weight 10.3 oz
