SPC-402 Vortex Optics SPARC II 2 MOA Bright Red Dot
$241.95

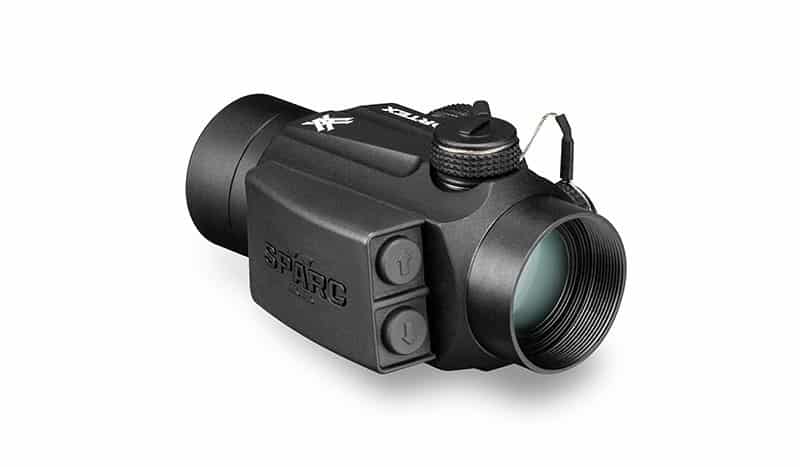

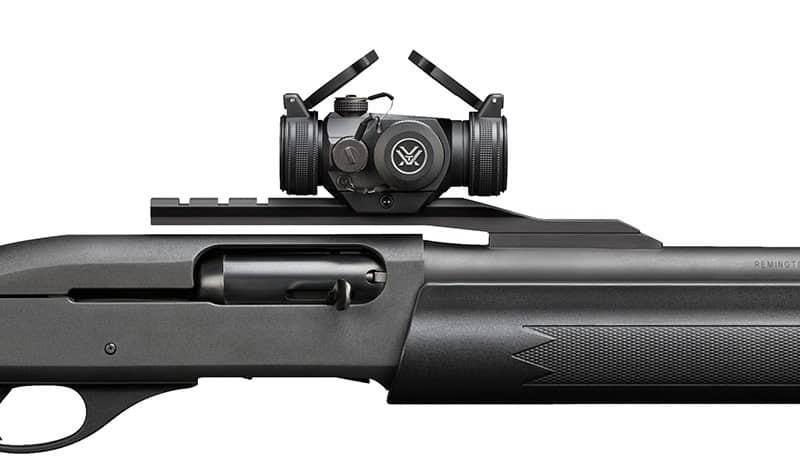

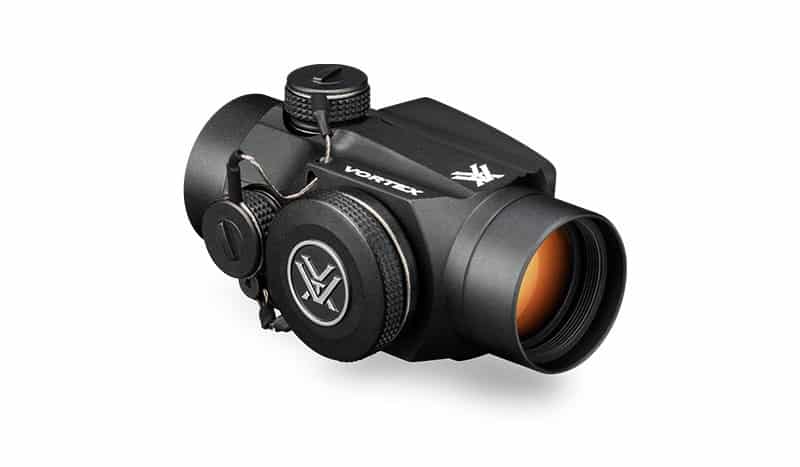

Get on target fast with the SPARC II. Ultra-compact and lightweight, the SPARC II (Speed Point Aiming for Rapid Combat) is equally at home mounted on an AR-15 or shotgun. Digital rear facing controls for powering on/off and adjusting the 2 MOA daylight bright red dot brightness at ten intensity levels—automatically returning to the last dot intensity used when powered up. Rugged single-piece body machined from aircraft grade aluminum is o-ring sealed for waterproof and fogproof performance.
Note:

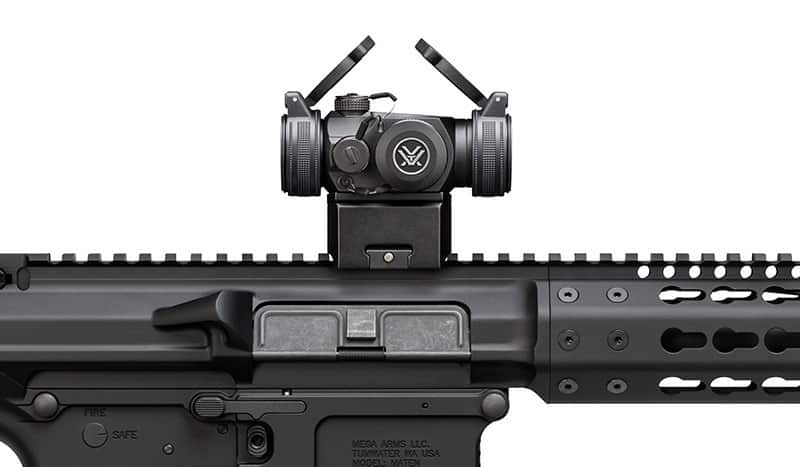

The versatile multi-height mount system accomodates most firearms including AR-15s needing absolute or lower 1/3 co-witness heights, and mounts on standard Weaver or Picatinny bases (not included). A modular three-piece base offers four separate mounting heights for user- and weapon-specific customization: 18.0 mm (.709 inches), 21 mm (.823 inches), 37 mm (1.457 inches), 40 mm (1.575 inches).

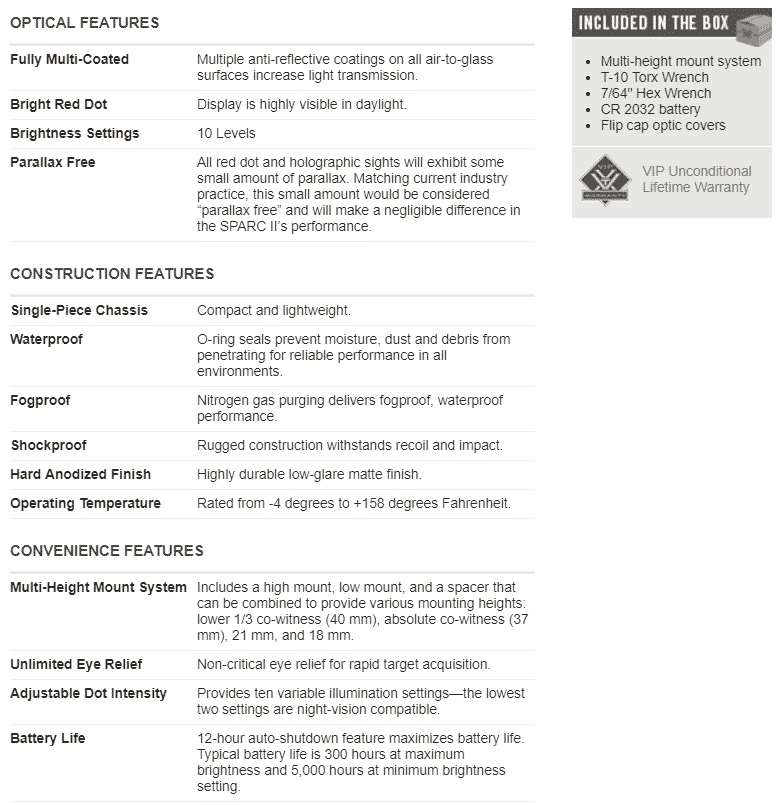

Features:
Optical Features:
Fully Multi-Coated | Multiple anti-reflective coatings on all air-to-glass surfaces increase light transmission. |
Bright Red Dot | Display is highly visible in daylight. |
Brightness Settings | 10 Levels |
Construction Features:
Single-Piece Chassis | Compact and lightweight. |
Waterproof | O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments. |
Fogproof | Nitrogen gas purging delivers fogproof, waterproof performance. |
Shockproof | Rugged construction withstands recoil and impact. |
Hard Anodized Finish | Highly durable low-glare matte finish. |
Operating Temperature | Rated from -4 degrees to +158 degrees Fahrenheit. |
Convenience Features:
Multi-Height Mount System | Includes a high mount, low mount, and a spacer that can be combined to provide various mounting heights: lower 1/3 co-witness (40 mm), absolute co-witness (37 mm), 21 mm, and 18 mm. |
Unlimited Eye Relief | Non-critical eye relief for rapid target acquisition. |

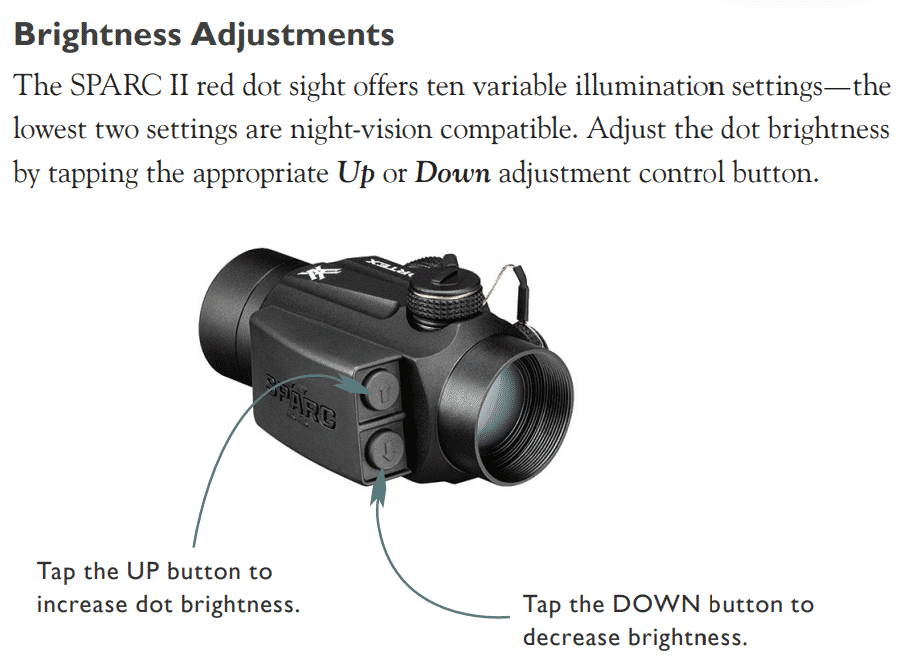

Adjustable Dot Intensity | Provides ten variable illumination settings—the lowest two settings are night-vision compatible. |

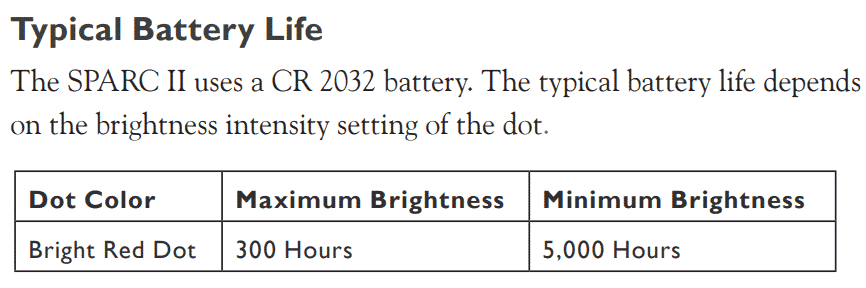

Battery Life | 12-hour auto-shutdown feature maximizes battery life. Typical battery life is 300 hours at maximum brightness and 5,000 hours at minimum brightness setting. |

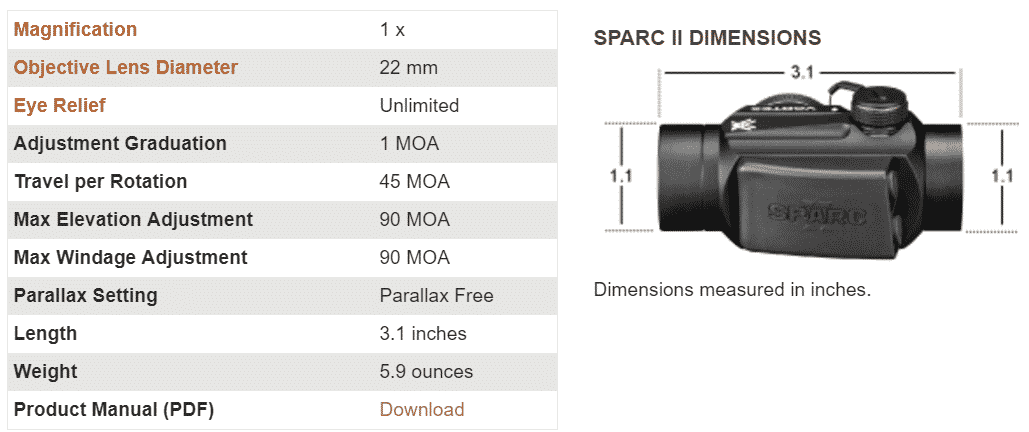

Specifications:
Magnification | 1 x |
Objective Lens Diameter | 22 mm |
Eye Relief | Unlimited |
Adjustment Graduation | 1 MOA |
Travel per Rotation | 45 MOA |
Max Elevation Adjustment | 90 MOA |
Max Windage Adjustment | 90 MOA |
Parallax Setting | Parallax Free |
Length | 3.1 inches |
Weight | 5.9 ounces |
Product Manual (PDF) | Download |
Included In the Box:
Dimensions:
Dimensions measured in inches.
Reticle:
Daylight Bright Red Dot:
The daylight bright 2 MOA dot is fast and easy to use. Choose among ten variable illumination settings—the lowest two settings are night-vision compatible.
Subtension detail for the SPARC II red dot. >
