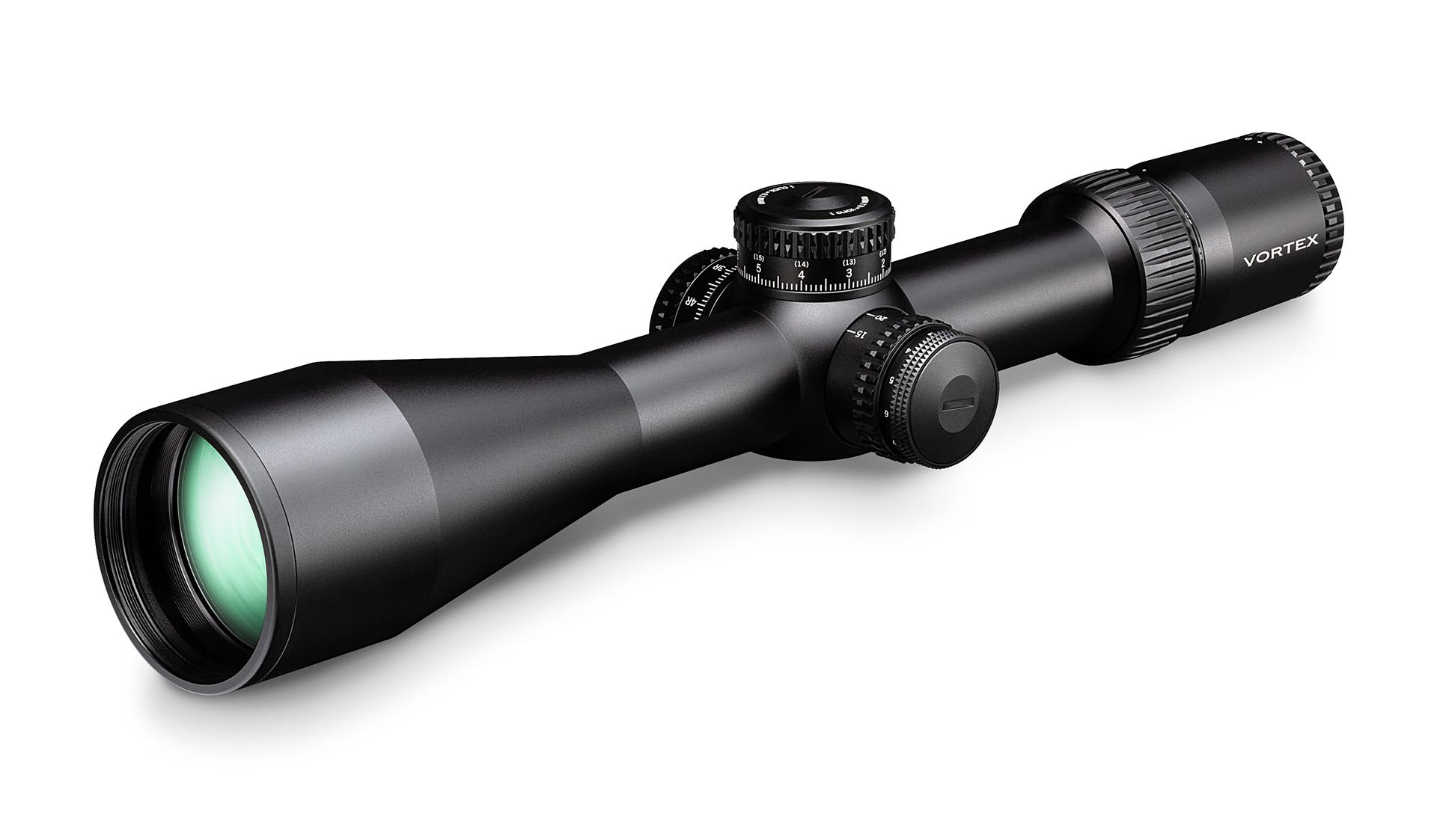

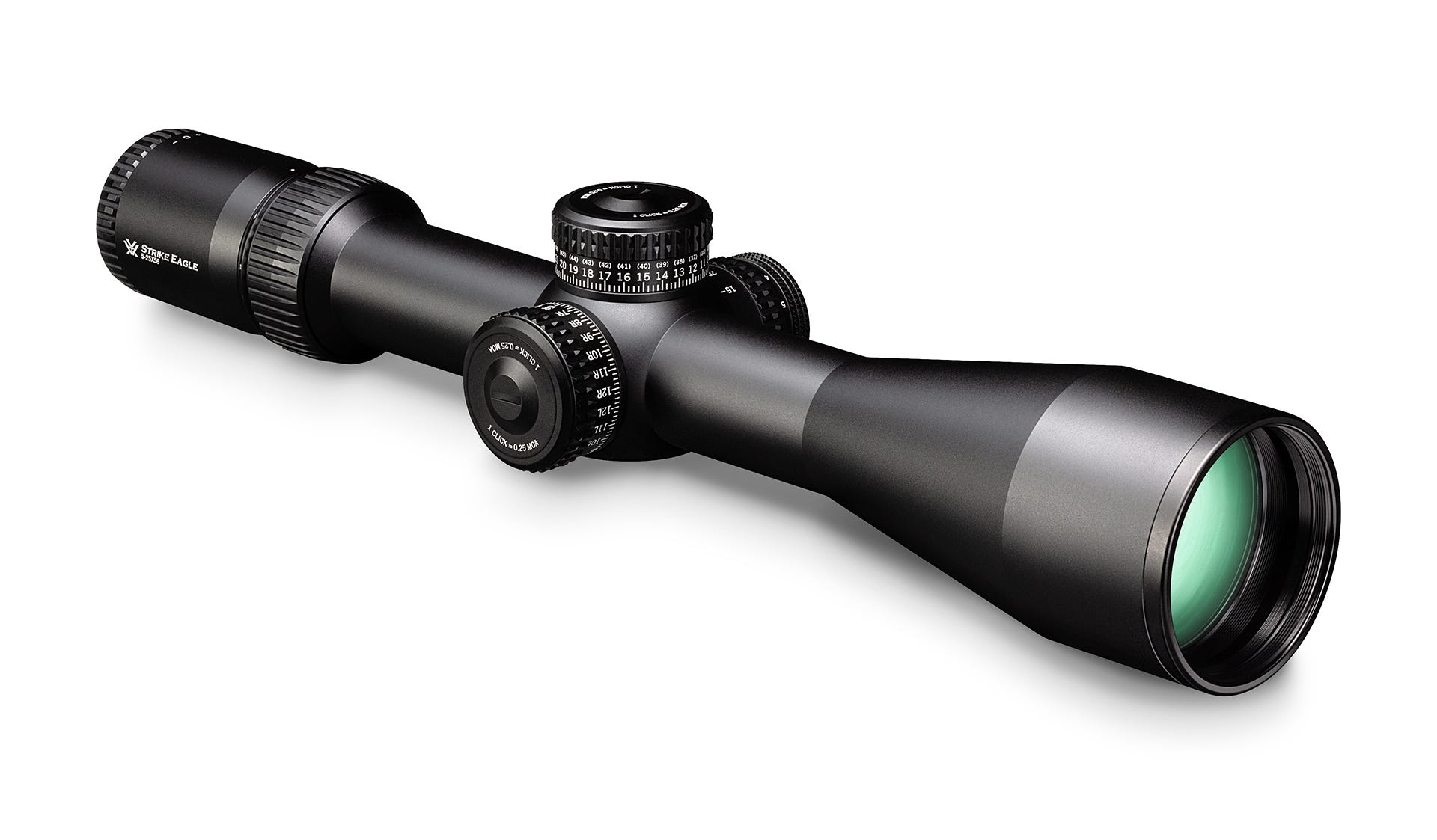

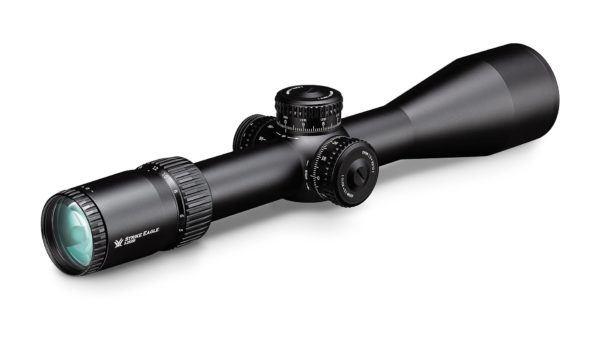

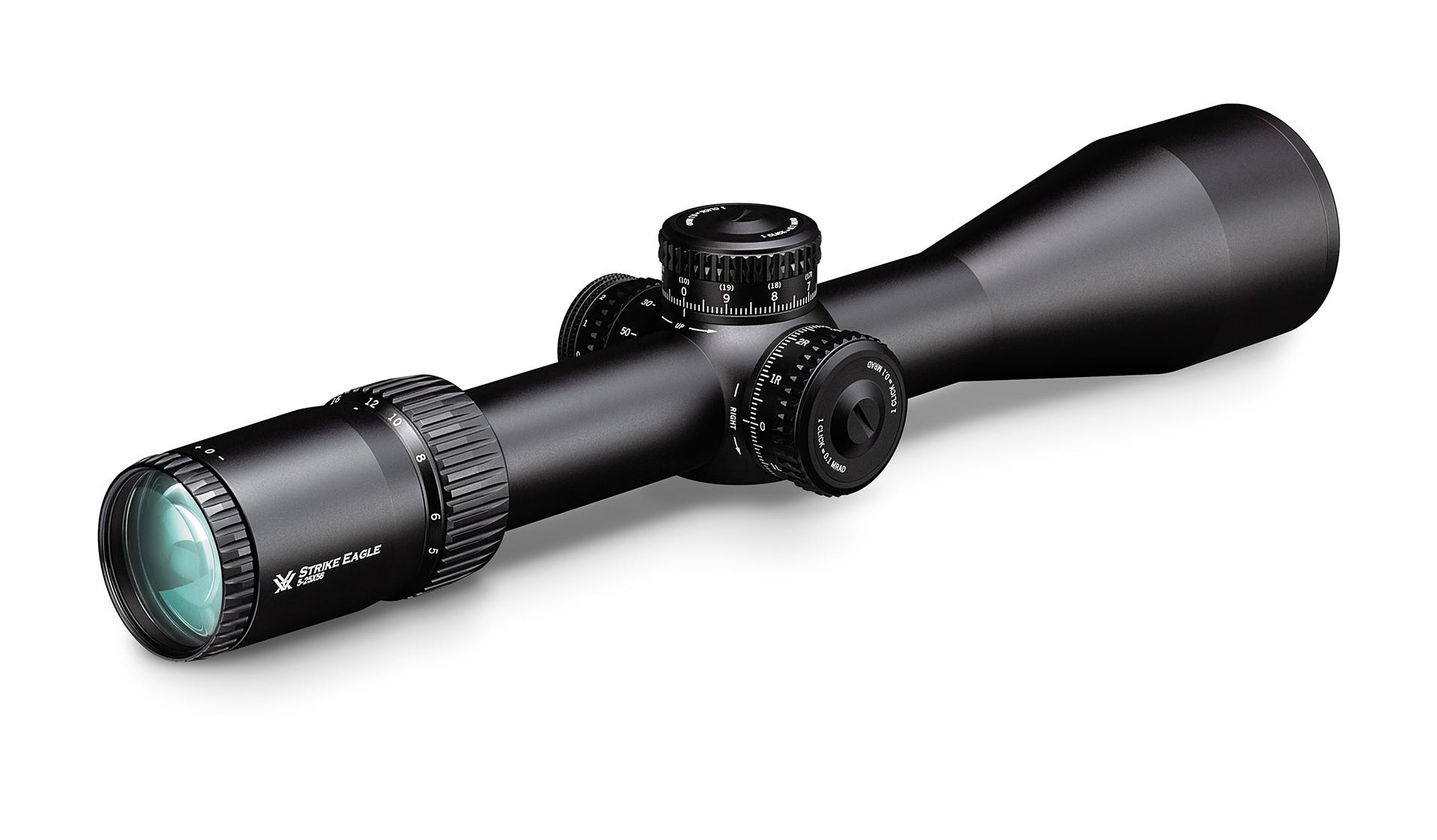

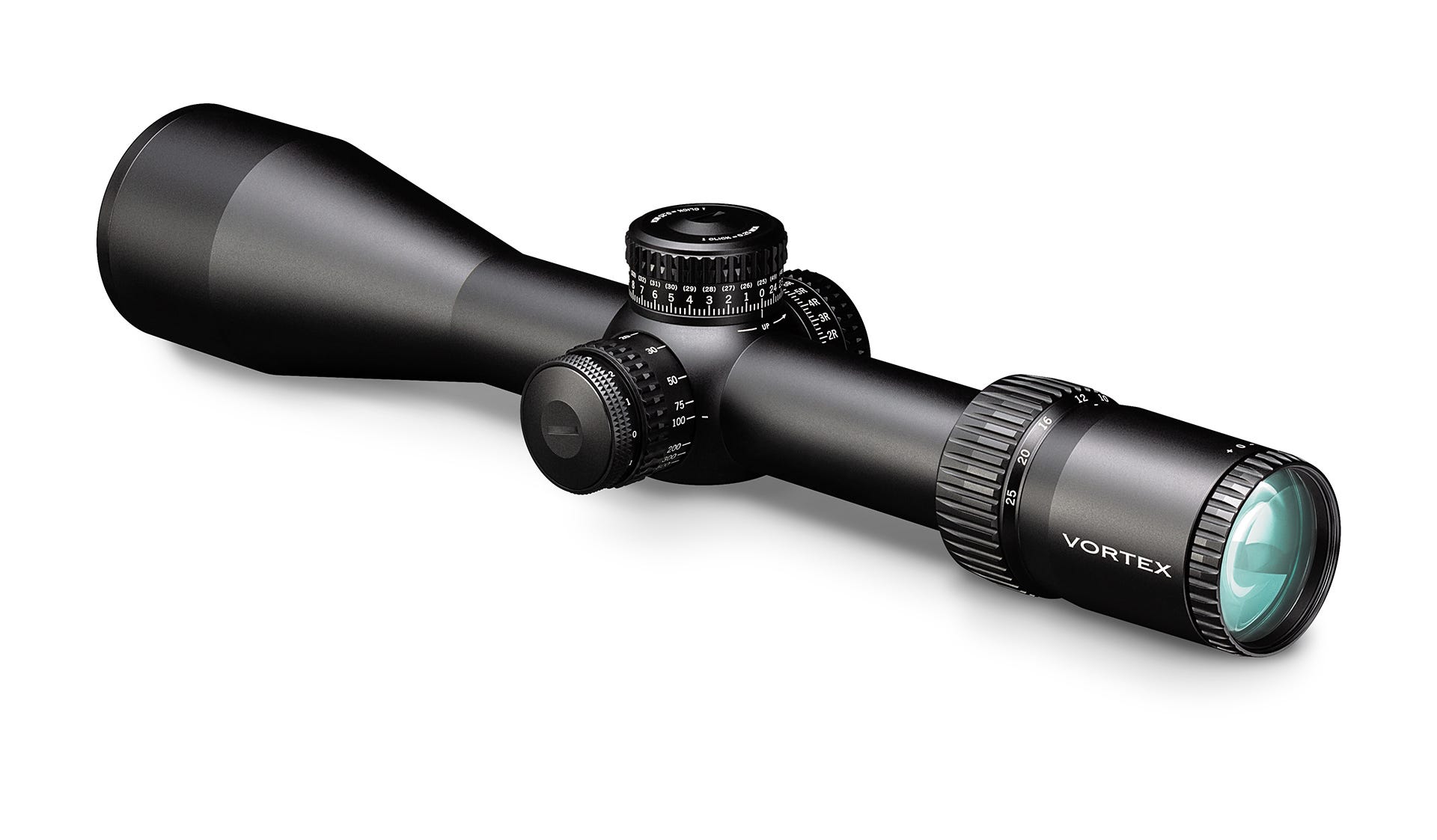

Vortex Optics STRIKE EAGLE® 5-25X56 FFP - EBR-7C (MRAD) Reticle (SE-52504)

SKU: SE-52504 Categories: ,
Price:

$824.95

Out of stock

Description
Specifications

When you're ready to step up your long-distance game, the Strike Eagle gives you more of the tools you need for less than you'd expect. Start with excellent edge-to-edge sharpness, and add a first focal plane (FFP) illuminated reticle for fast reads at any magnification and lighting situation. Add in our RevStop Zero System for a hard return to zero, and locking turrets for fast, stay-put adjustments. Build it around a 34mm tube that accommodates massive amounts of elevation and windage travel, and a throw lever for rapid magnification changes, and you've got a long-distance impact machine that'll have you wondering how you ever shot without it.





VORTEX STRIKE EAGLE 5-25X56 FFP RIFLESCOPE

Introducing the Strike Eagle® 5-25x56 FFP. Featuring the RevStop™ Zero System for easy return to zero, exposed locking turrets and illuminated first focal plane reticle, the Strike Eagle 5-25x56 gives tactically-minded shooters all the tools they need to dominate the long range game.



SE-52504 Features:

SE-52504 Optical Features:

XD™ Lens Elements Extra-low dispersion (XD) glass increases resolution and color fidelity, resulting in crisp, sharp images.
Fully Multi-Coated Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.
First Focal Plane Reticle Scale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications.
Glass-Etched Reticle Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability.


SE-52504 Construction Features:

ArmorTek ® Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
Shockproof Rugged construction withstands recoil and impact.
Waterproof O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.
Fogproof Nitrogen gas purging prevents internal fogging over a wide range of temperatures.
Tube Size 34 mm diameter provides maximized internal adjustment and strength.
Side Focus Adjustment located on left side of turret housing is easily accessible from shooting position. Provides optimal image focus and parallax removal.
Aircraft-Grade Aluminum Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Tactical Locking Turrets Integrated locking mechanism prevents accidental adjustments. Turrets provide fast, accurate, easily read elevation and windage adjustments.


SE-52504 Convenience Features:

Fast Focus Eyepiece Allows quick and easy reticle focusing.
Throw Lever The included throw lever can be installed for quick and easy magnification adjustments.
RevStop™ Zero System Patented streamlined design offers an easy to set, rock-solid return to zero after turret adjustments.



SE-52504 Specifications:

Magnification 5-25x
Objective Lens Diameter 56 mm
Eye Relief 3.7 inches
Field of View 24.0 - 5.2 ft @100 yds
Tube Size 34 mm
Elevation Turret Style Locking/Zero Stop
Windage Turret Style Locking
Adjustment Graduation .1 MRAD
Travel Per Rotation 10 MRAD
Max Elevation Adjustment 31 MRAD
Max Windage Adjustment 23 MRAD
Parallax Setting 15 yards to infinity
Length 14.6 inches
Weight 30.4 oz
Product Manual (PDF) Download
Reticle Manual (PDF) Download



SE-52504 Included In the Box:

  • Sunshade
  • Lens cloth
  • CR2032 battery
  • Turret tool
  • 2mm hex wrench
  • Throw lever
  • Rubber style lens covers



SE-52504 Measurments:

Vortex Optics STRIKE EAGLE® 5-25X56 FFP - EBR-7C (MRAD) Reticle (SE-52504) 6

LENGTHS
L1 L2 L3 L4 L5 L6
14.6 2.0 2.6 6.4 4.75 3.6

**Dimensions measured in inches.

HEIGHTS
H1 H2
2.5 1.8

**Dimensions measured in inches.



EBR-7C (MRAD) RETICLE:

Hash-marked reticle using MOA or MRAD-based subtension lines and floating wind hold dots for ranging, holdover, and windage corrections. Letters refer to reticle subtensions listed in chart below..

Subtension detail for Strike Eagle 5-25x56 riflescope with EBR-7C MRAD reticle.

Vortex Optics STRIKE EAGLE® 5-25X56 FFP - EBR-7C (MRAD) Reticle (SE-52504) 7
